Probe Pin
The probe pin of Meca Tech Systems provides customers with optical
solutions through own design and manufacturing/inspection lines in order
to improve the efficiency of the test as the test techniques are becoming
complicated and also fine pitch.
solutions through own design and manufacturing/inspection lines in order
to improve the efficiency of the test as the test techniques are becoming
complicated and also fine pitch.
- Competitiveness & Features
- ㆍMinimum Testable Pitch : 0.35mm
- ㆍMinimum Testable Pin Length : 2.67mm
- ㆍHigh Speed Test Possibility
- ㆍApplication : Test Socket / High Density PCB Test
- ㆍLife Time : >500,000 ~ 1,000,000 Insertion
- ㆍVertical Probing
- ㆍInsulation Resistance : 109 Ω (at DV50V)
- ㆍContact Resistance : Initial ≤40mΩ after 500,000

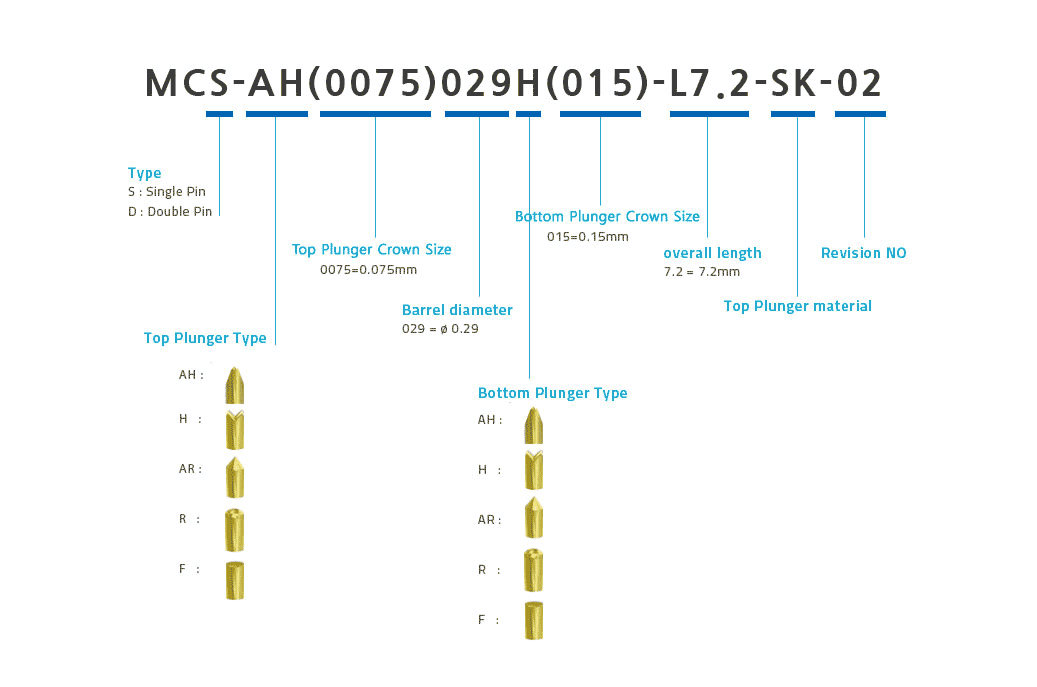

Probe Pin Part List
| Meca tech Part No. | Test Pitch | Top Plunger | Barrel | Bottom Plunger |
Length | Barrel length |
Top length |
Bottom length |
Recomm ended travel |
Spring force |
Full travel |
Spring force |
Pin Type |
| MCD-AH(010)030AH(010)-L6.7-SK-02 | 0.4 | 0.18(AH) | 0.3 | 0.15(AH) | 6.7 | 5 | 1.2 | 0.5 | 0.7 | 22 | 0.8 | 24.7 | Double Pin |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MCD-AH(005)030AH(010)-L6.7-SK-03 | 0.4 | 0.18(AH) | 0.3 | 0.15(AH) | |||||||||
| MCD-AR(005)030AH(010)-L6.7-04 | 0.4 | 0.18(AH) | 0.3 | 0.15(AH) | |||||||||
| MCD-R(009)030AH(010)-L6.7-05 | 0.4 | 0.18(Full R) | 0.3 | 0.15(AH) | |||||||||
| MCD-AH(0075)030AH(010)-L6.7-SK-06 | 0.4 | 0.18(AH) | 0.3 | 0.15(AH) | |||||||||
| MCD-AR(005)031AR(005)-L5.7-01 | 0.4 | 0.15(AR) | 0.31 | 0.15(AH) | 5.7 | 4 | 1.1 | 0.6 | 0.5 | 20.3 | 0.8 | 30.4 | |
| MCD-AH(010)031AH(010)-L5.7-02 | 0.4 | 0.15(AR) | 0.31 | 0.15(AR) | |||||||||
| MCD-AR(005)029AH(010)-L7.6-01 | 0.4 | 0.20(AR) | 0.29 | 0.15(AH) | 7.6 | 5.8 | 1.2 | 0.6 | 0.7 | 25 | 1.2 | 39.5 | |
| MCD-AH(010)029AH(010)-L7.6-SK-02 | 0.4 | 0.20(AH) | 0.29 | 0.15(AH) | |||||||||
| MCD-AH(010)026AR(005)-L4.6-01 | 0.4 | 0.12(AH) | 0.26 | 0.15(AH) | 4.6 | 3.12 | 1 | 0.48 | 0.5 | 19 | 0.9 | 21.9 | |
| MCD-R(0175)061AR(005)-L11.85-01 | 0.4 | 0.35(Full R) | 0.61 | 0.15(AR) | 11.85 | 8.25 | 1.8 | 1.8 | 1.4 | 22 | 3.05 | 42.2 | |
| MCD-R(0165)057R(0165)-L14.3-01 | 0.8 | 0.33(Full R) | 0.57 | 0.35(Full R) | 14.3 | 11.8 | 1.25 | 1.25 | 2 | 25 | 2.5 | 31.2 | |
| MCD-AH(005)026AR(075)-L6.8-01 | 0.35 | 0.12(AH) | 0.26 | 0.33(Full R) | 6.8 | 5 | 1.2 | 0.6 | 0.8 | 20 | 1.1 | ||
| MCS-AH(005)026H(014)-L4.6-SK-01 | 0.35 | 0.17(AH) | 0.26 | 0.14(H) | 4.6 | 2.67 | 1.05 | 0.88 | 0.6 | 19.4 | 0.7 | 21.6 | Single Pin |
| MCS-AH(005)029H(015)-L5.25-SK-01 | 0.4 | 0.22(AH) | 0.29 | 0.12(AR) | 5.25 | 3.8 | 0.75 | 0.7 | 0.6 | 26.6 | 0.7 | 30.3 | |
| MCS-AH(005)029H(015)-L5.25-SK-02 | 0.4 | 0.22(AH) | 0.29 | 0.15(H) | 3.6 | 0.75 | 0.9 | 0.65 | 22 | 0.8 | 26 | ||
| MCS-AH(005)027H(012)-L5.25-SK-03 | 0.4 | 0.19(AH) | 0.27 | 0.15(H) | 3.3 | 1.05 | 0.9 | 0.65 | 19.6 | 0.8 | 23.2 | ||
| MCS-AH(005)026H(014)-L6.8-SK-01 | 0.35 | 0.17(AH) | 0.26 | 0.14(H) | 6.8 | 4.5 | 1.25 | 1.05 | 0.7 | 20.6 | 0.9 | 24.4 | |
| MCS-AH(010)029H(015)-L7.2-SK-02 | 0.4 | 0.22(AH) | 0.29 | 0.18(AH) | 7.2 | 5.35 | 0.75 | 1.1 | 0.73 | 32 | 0.95 | 41.1 | |
| MCS-AH(005)029H(015)-L7.2-SK-02 | 0.4 | 0.22(AR) | 0.29 | 0.15(H) | |||||||||
| MCS-AR(005)029AR(005)-L7.2-04 | 0.4 | 0.22(Full R) | 0.29 | 0.15(H) | |||||||||
| MCS-R(011)029H(015)-L7.2-05 | 0.4 | 0.22(AH) | 0.29 | 0.22(AR) | |||||||||
| MCS-AH(0075)029H(015)-L7.2-SK-06 | 0.4 | 0.22(AH) | 0.29 | 0.15(H) | |||||||||
| MCS-AH(005)026AR-L7.2-SK-01 | 0.35 | 0.22(AH) | 0.26 | 0.12(AR) | 7.2 | 5 | 1.3 | 0.9 | 0.7 | 21.5 | 0.9 | 25.5 | |
| MCS-AR(005)029H(015)-L4.4-01 | 0.4 | 0.22(AR) | 0.29 | 0.15(H) | 4.4 | 0.5 | 0.7 | 0.5 | 26.6 | 0.7 | 33.3 | ||
| MCS-AH(010)029H(015)-L4.4-SK-02 | 0.4 | 0.22(AH) | 0.29 | 0.15(H) |
